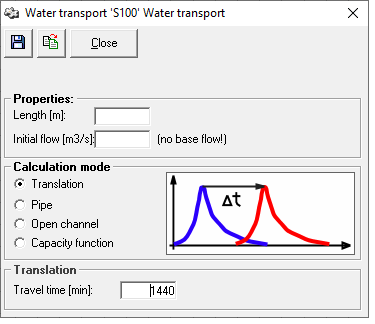

Transport Reach Window
|
|
The properties for transport reach can be opened by double-clicking on the element symbol in the system plan
or by right-clicking → Properties.
In the upper part of the window there are three buttons: one for saving
, one for applying the parameters and one for the settings of transport reach elements in the same database (i.e. also from other variants and projects)
. In addition, there is a button for closing the window. It is important to know that the transport reach window saves automatically when closing via this button.
Properties
The length of the transport reach and the starting value for the flow are entered in the "Properties" section.
Calculation Method
In the calculation method section, the translation and retention behavior calculation method is set for the transport reach element. There are four options:
- Translation (pure translation without retention)
- Pipe (gravitational)
- Open channel (with defined cross section geometry)
- Capacity function (via characteristic curve: water level - cross-sectional area - outflow)
Translation

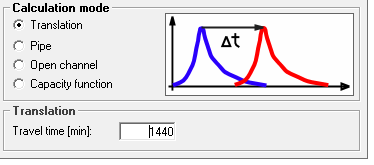

If the calculation method translation is selected, only the translation time parameter is entered. The default setting is 1440 min, i.e. one day.
Pipe

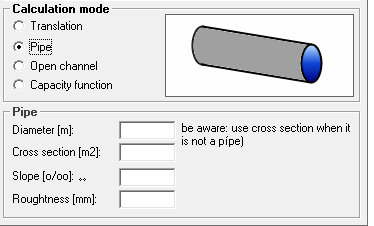

For the calculation of the transport reach as a pipeline, information on the diameter, the slope and the roughness of the pipe are required. If the transport reach for a pipe with non-circular cross section is to be calculated, the hydraulic diameter and the profile area (whole cross section when fully filled) are specified instead of the circular diameter.
Open Channel

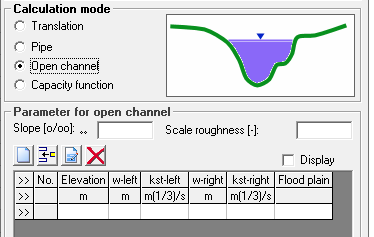

The calculation option open channel requires the specification of a cross section, defined by a height, and the corresponding widths on the right and left. The Strickler values (kst) are entered separately for the right and left bank and it can be specified whether the supporting point is the channel itself or the foreland. For this purpose, the values can be simply written into the table area and it is possible to navigate through the table or to insert new lines with the arrow keys, the tab key or the enter key.
Alternatively, the function bar
can be used to edit the table. You can:
- add new supporting points to the end of the table
- insert new supporting points in front of the currently marked support point
- edit a supporting point in an extra window
- delete the marked supporting point
By right-clicking on the table, a menu appears which can also be used to add, insert and delete rows.

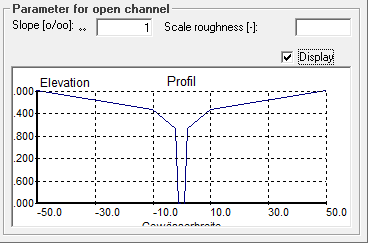

If you have entered a cross section in the table, you can have it displayed as a graphic by checking the checkbox Display.
Capacity Function

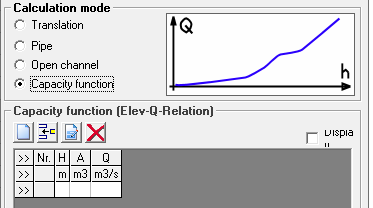

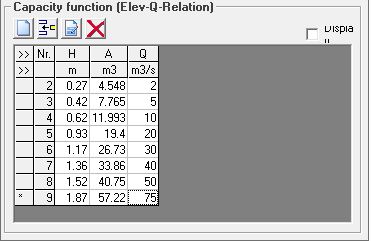

The calculation option capacity function requires the input of a discharge curve defined by several supporting points including water level, cross-sectional area and the corresponding discharge.
For this purpose, the values can simply be written into the table area and you can navigate through the table or insert new rows using the arrow keys, the tab key or the enter key.
Alternatively, the function bar can be used to edit the table. You can:
- add new supporting points to the end of the table
- insert new supporting points in front of the currently marked supporting point
- edit a supporting point in an extra window
- delete the marked supporting point
By right-clicking on the table, a menu appears which can also be used to add, insert and delete rows.
If you have entered a discharge curve in the table, you can have it displayed as a graphic by checking the Display box.
